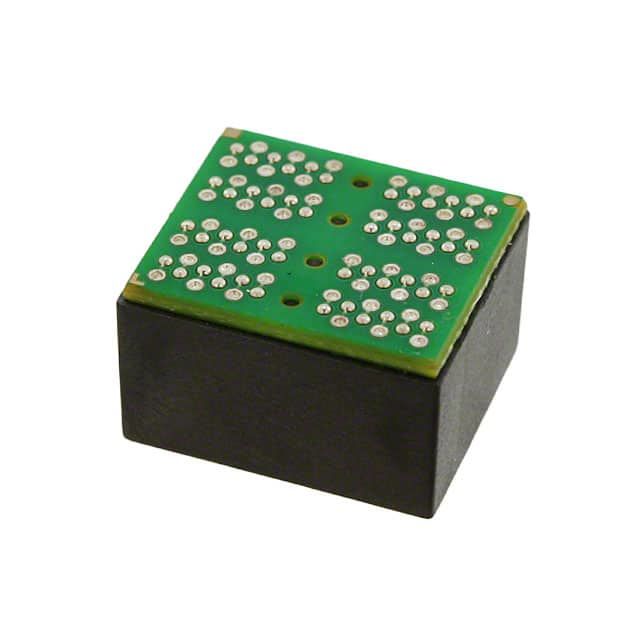

HX5201NL
الشركة المصنعة:
الهوائيات النبضة
الوصف:
HX5201NL datasheet pdf and Pulse Transformers product details from PulseLarsen Antenna stock available at Rozee
الفئة:
محولات
المواصفات
Part Number:
HX5201NL
Manufacturer:
PulseLarsen Antenna
Description:
In stock. Alternative models available.
Lifecycle:
New from this manufacturer
Delivery:
DHL、UPS、FedEx、Registered Mail
Payment:
T/T Paypal Visa Western Union
More Information:
HX5201NL More Information
ECAD:
Request Free CAD Models
Pricing(USD):
$13.88
Remark:
Manufacturer: PulseLarsen Antenna.
Rozee is one of the Distributors.
Wide range of applications.
Depth:
17.27 mm
Width:
14.73 mm
Length:
14.73 mm
Inductance:
350 µH
Return Loss:
-16 dB
Turns Ratio:
1:1
Number of Pins:
4
DC Resistance (DCR):
650 mΩ
Height - Seated (Max):
11.18 mm
Min Operating Temperature:
-40 °C
Products Category:
Transformers - Pulse Transformers
Qty:
3054 In Stock
Applications:
Grid infrastructure
Pro audio, video & signage
Test & measurement
Mount:
Surface Mount
Height:
10.67 mm
Shielding:
Unshielded
Schedule B:
8504312000
Termination:
SMD/SMT
Case/Package:
SMD/SMT
Isolation Voltage:
1.5 kV
Insertion Loss (dB):
-1.2 dB
Max Operating Temperature:
70 °C
رقم الموديل:
HX5201NL
مقدمة
HX5201NL Overview\\\\nHX5201NL is a model belonging to the Pulse Transformers subcategory under Transformers. For specific product performance parameters, please refer to the data sheet, such as PDF files Docx documents, etc. We have HX5201NL high-definition pictures and data sheets for reference. We will continue to produce various video files and 3D models for users to understand our product more intuitively and comprehensively. HX5201NL is widely used in Grid infrastructur
